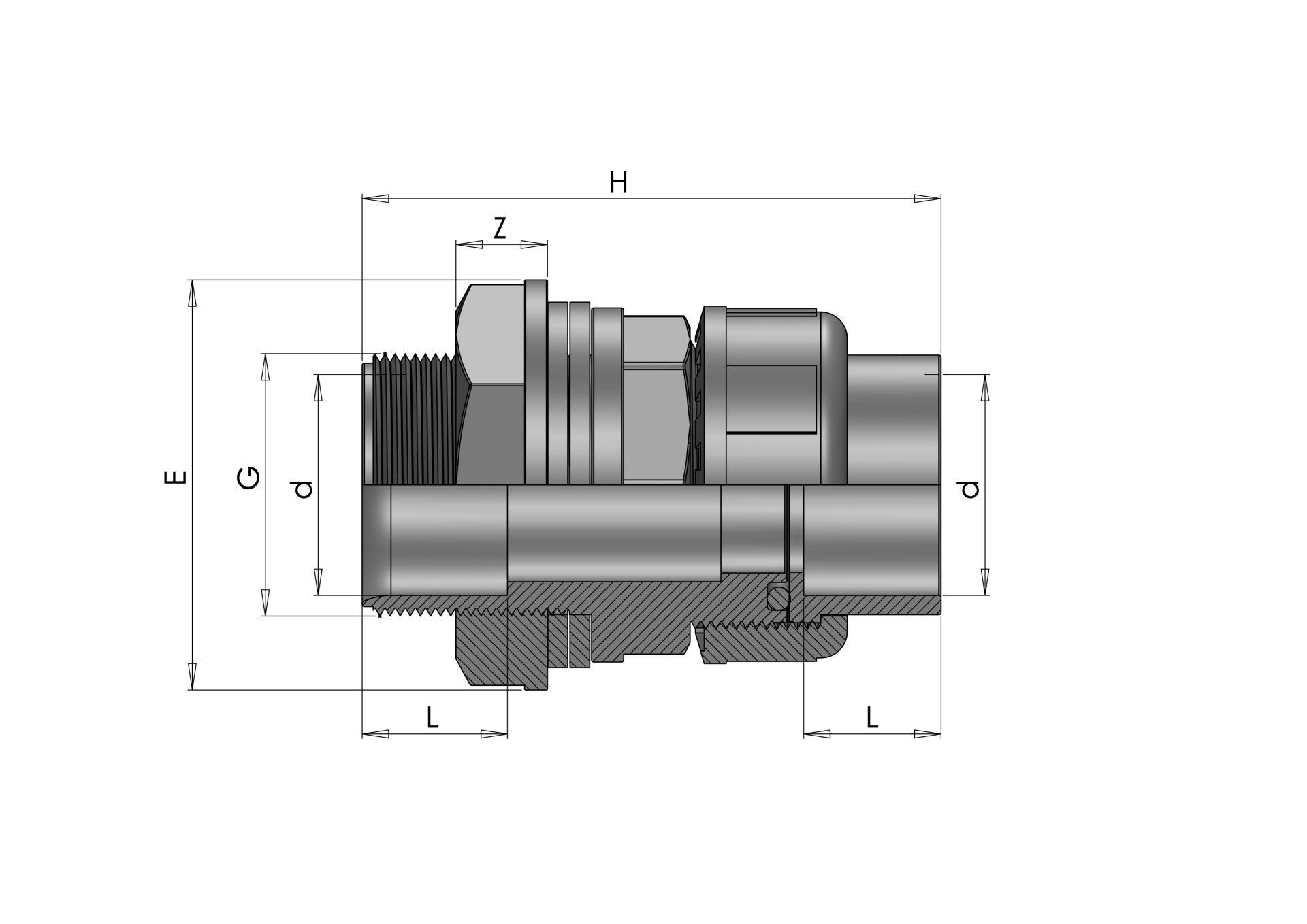

Dimensional data
| Codice/Code | G | d | z | H | E | L1 | L2 | Gr | |
|---|---|---|---|---|---|---|---|---|---|
| US12050G | 2" | 50 | 21 | 132 | 93 | 33 | 31 | 424 |  |
Log in or register to view all table data and other content such as documents and 2D/3D and BIM files

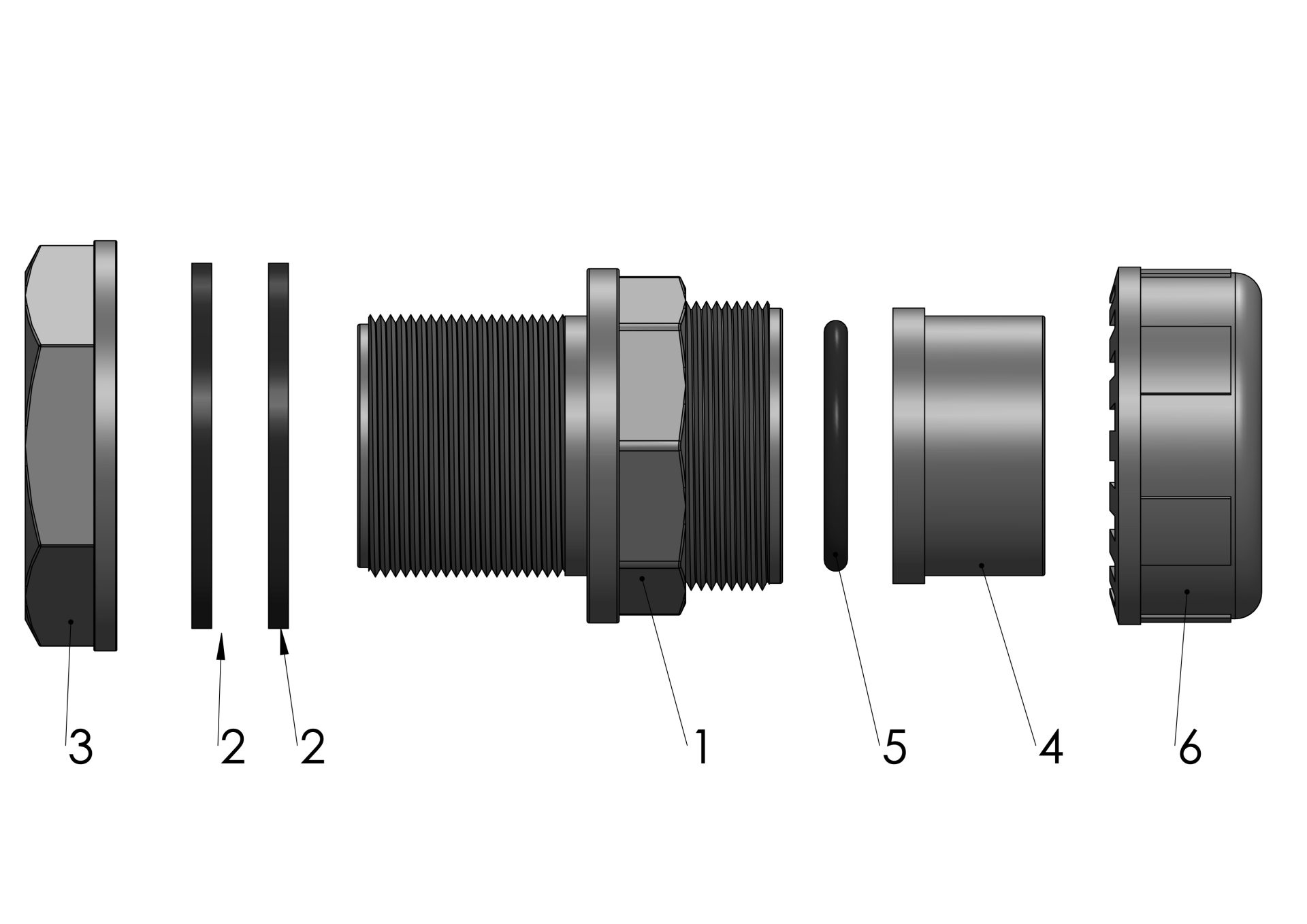

Components
| Pos. | Components | N° | Material |
|---|---|---|---|
| 1 | Wall sleeve body | 1 | PVC |
| 2 | Flat gasket ST10 | 2 | EPDM |
| 3 | Locknut PVC | 1 | PVC |
| 4 | Idler Piece | 1 | PVC |
| 5 | Body O-RING | 1 | EPDM |
| 6 | Union Locknut | 1 | PVC |
Log in or register to view all table data and other content such as documents and 2D/3D and BIM files
Product Related Files
Login or register to download all documents, 2D/3D and BIM files
